Boost your assembly capabilities with our professional assembly tool!
Designed for exceptional precision, our tool makes holding SMD components hassle-free.
Diaphragm Suction Technology: The Picograb V1 employs advanced suction technology that ensures precise and secure holding of the smallest components.
Aluminum Body: Constructed from a durable aluminum body, the V1 is not only strong and lightweight, but also offers excellent durability to withstand constant use in demanding work environments.
Interchangeable Tips: With interchangeable tips, the V1 offers exceptional versatility to accommodate a wide range of SMD components. These interchangeable tips allow users to fine-tune the tool to their specific assembly needs, giving them the flexibility to tackle a variety of electronic assemblies with ease.
The Right Tip for Each Part: Use the 10 mm cup for ICs and modules, the 5 mm cup for SOIC and 1206 parts, and the 3 mm cup for 0805 and 0603 chips. The bare needles go smaller: 0603, and down to 0402 once you get the feel for it. Touch the part flat, press the button, lift straight up. Start with the cups and move to the needles as you practice.
Press to Pick, Let Go to Place: Lifts up to 140 g with the 10 mm cup. With a cup, the seal holds the part for 1 to 3 seconds after you release the button, so you can place it without motor vibration. It isn't a desoldering tool and doesn't remove solder.

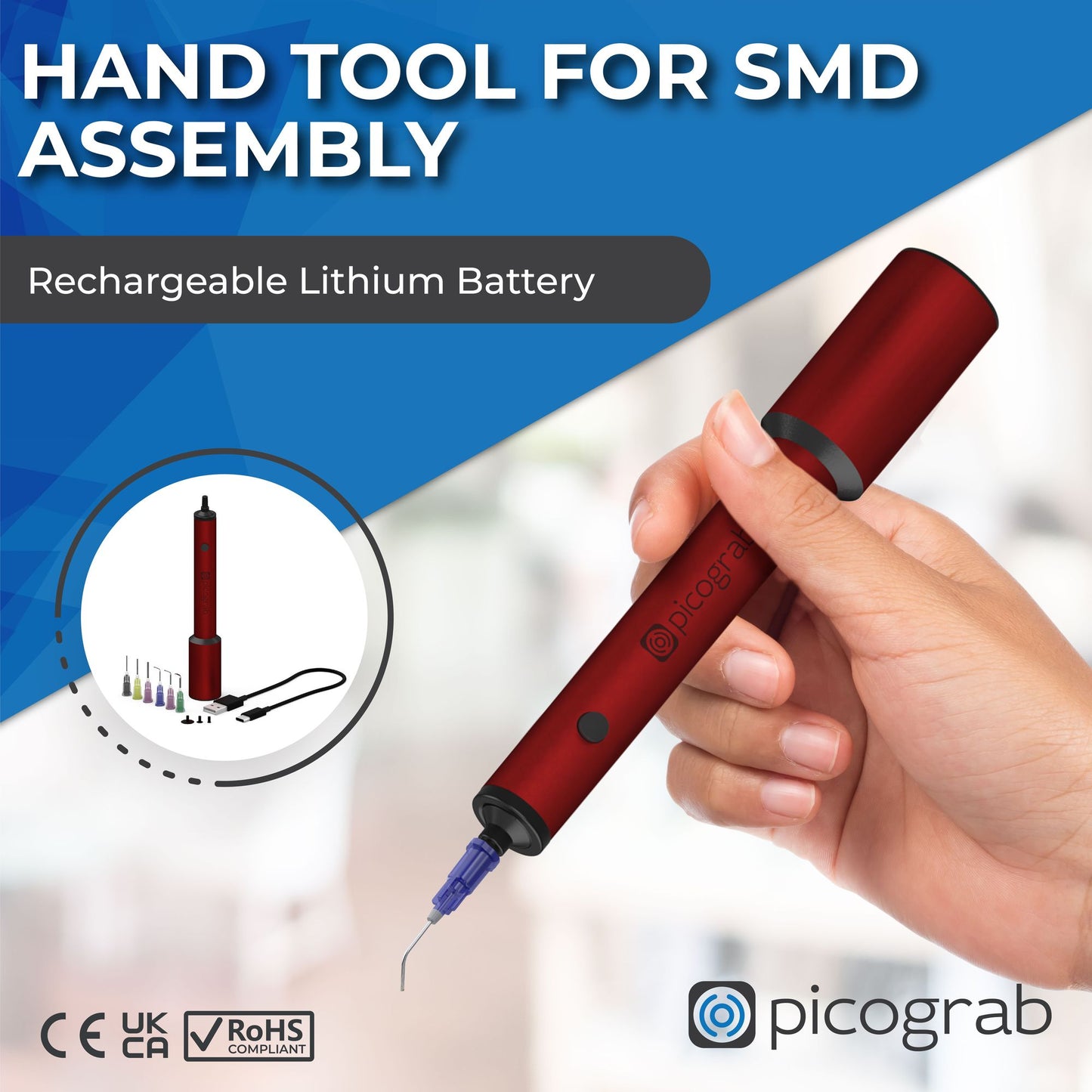

Rechargeable Battery, Up to 10 Hours: The lithium battery gives up to 10 hours of continuous use. Charge it through the USB-C port with the included USB-A to USB-C cable, from a PC, a wall adapter or a power bank. It doesn't charge from USB-C PD chargers or laptop USB-C ports.
Ergonomic Design for Comfort: Designed with user comfort in mind, the V1 features an ergonomic design that ensures a comfortable and secure grip during use. This not only helps reduce fatigue during extended work sessions, but also improves user accuracy and efficiency, resulting in faster and more accurate assembly of electronic components.
LED Status Indicators: Equipped with LED status indicators, our tool provides instant visibility of the battery level and operating status. These indicators allow users to easily view the battery status, avoiding unnecessary interruptions during assembly.
In the Box: Picograb V1, 3 straight and 3 angled needles (18G, 20G and 22G), 3 silicone cups (3, 5 and 10 mm) and a USB-A to USB-C cable.
